Poldikeevitusaparaat BMS6iso Soyer
1 705,00 €
Palun küsige hinda
Laokood
BMS-6ISO

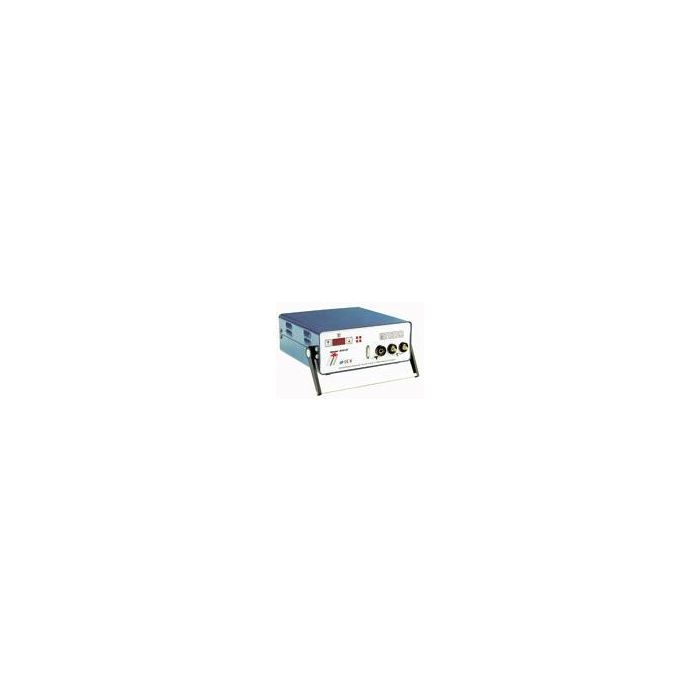

The new BMS-6 ISO SOYER stud welder is equipped with a microprocessor control. This stud welder meets highest requirements due to operating convenience, low weight, high efficiency, compact design and absolute safety.
| Welding range: | M3 - M6 or Ų 2 - 5.5 mm with steel, stainless steel, | |
| aluminium and brass, cupped head pins 2 - 2.7 mm | ||
| in diameter and 10 - 55 mm in length | ||
| Material: | Nail - coppered steel, clip - galvanized steel | |
| Welding process: | Capacitor discharge process as per EN ISO 14555 | |
| Standard gun: | PS-1 stud welding gun | |
| Additional gun: | PS-1KI stud welding gun for cupped head pins | |
| Power source: | Capacitor battery | |
| Charging capacity: | 44.000 μF | |
| Charging voltage: | 50 - 200 V, infinitely variable | |
| Welding time: | 0.001 - 0.003 seconds | |
| Welding sequence: | up to 20 nails or studs/min, depending | |
| on the respective diameter | ||
| Mains supply: | 115/230V - 50/60Hz - 16/10AT | |
| Welding cable: | 3 m highly flexible | |
| Earth cable: | 3 m highly flexible with clamp | |
| Dimensions: | 300 x 120 x 320 mm (w x h x d) | |
| Weight: | 8.4 kg | |
| Colour: | RAL 5009 azure-blue |
| Ühik | tk. |
|---|
